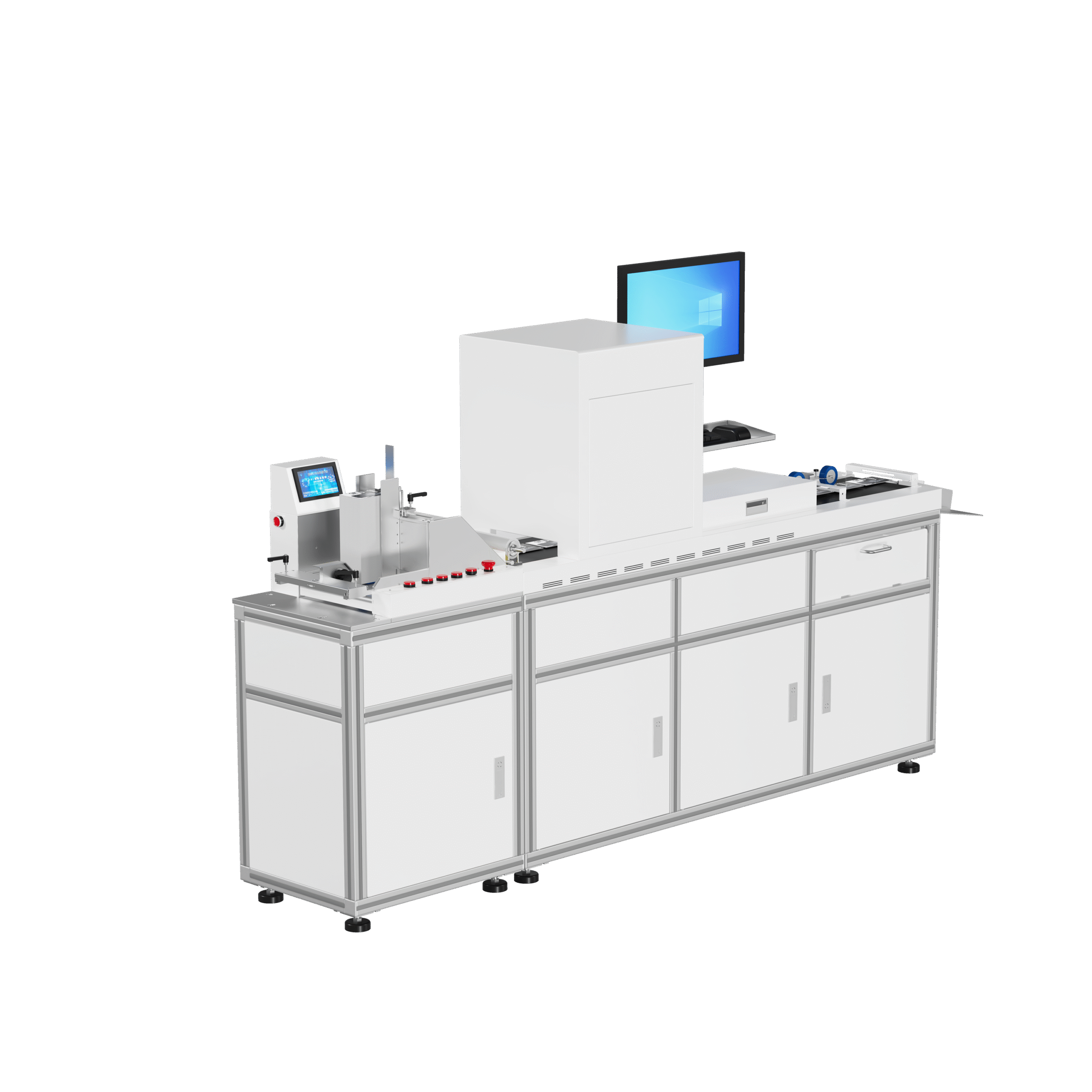

PV8000 Intelligent Quality Inspection Platform
PV8000 Intelligent Quality Inspection Platform - Image 2

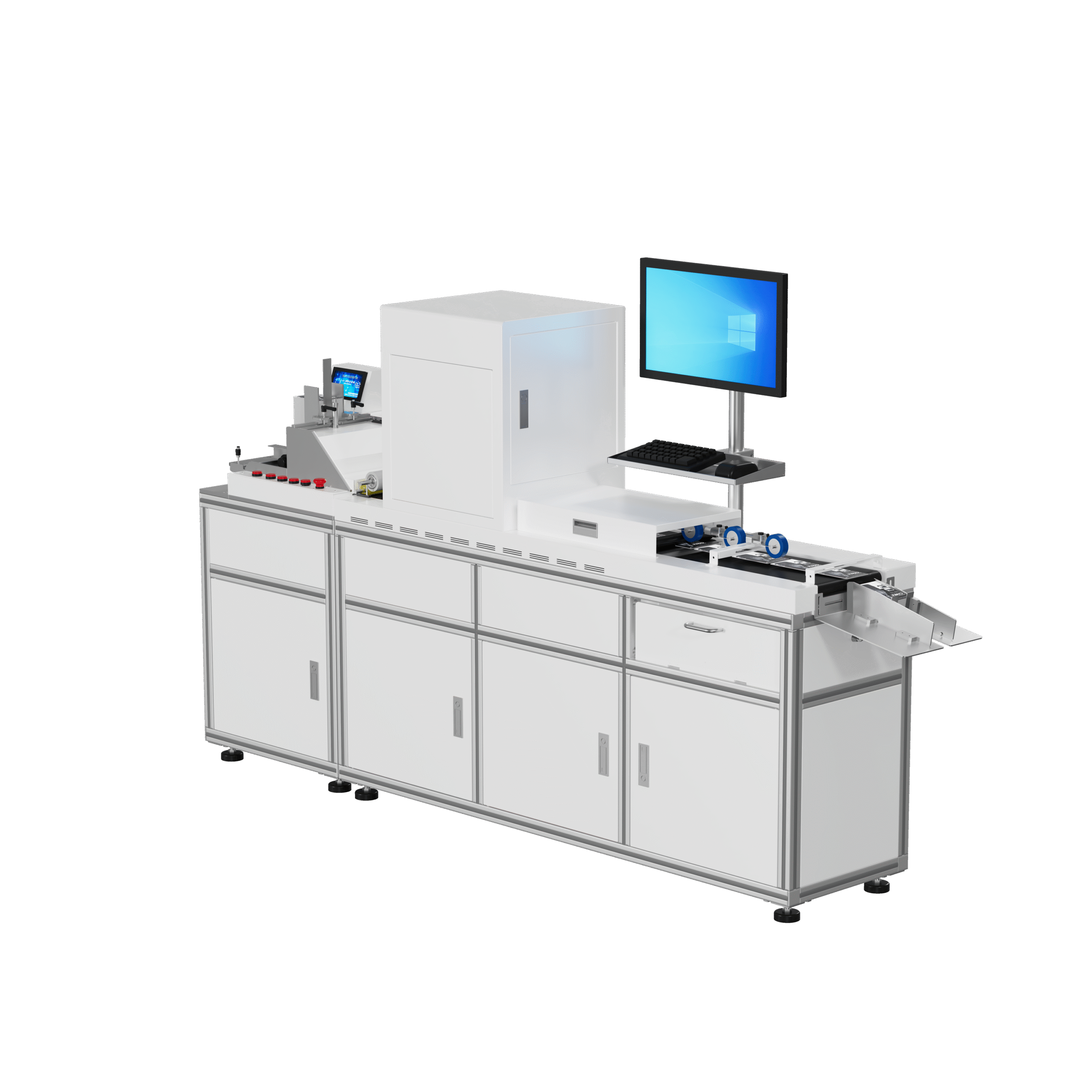

PV8000 Intelligent Quality Inspection Platform - Image 3

PV8000 Intelligent Quality Inspection Platform

Inspection Function List

Defect Detection

  • Surface printing defects (missing print/wrong color/ink splatter)
  • Foreign matter contamination, material damage

Process Detection

  • Die-cutting defects (burrs/misalignment)
  • Dimension tolerance detection (accuracy ±0.1mm)

Identification Verification

  • 1D barcode/2D barcode reading (compatible with Code 128/QR Code, etc.)
  • Serial number logic verification (wrong code/duplicate code/missing code)

Application Scenario Adaptation
▸ Material Types

  • Paper materials: paper cards/labels/color boxes/instruction manuals
  • Industrial materials: PCB boards/silk-screened nameplates/composite material sheets

▸ Industry Coverage

  • Quality inspection for food/pharmaceutical packaging printing
  • Appearance quality control for 3C electronic components
  • Final inspection on fast-moving consumer goods production lines

Core Parameters

Parameter Item Technical Specification
Operating Speed 30,000 sheets per hour
Minimum Detectable Size 50×60mm
Maximum Detectable Size 210×290mm
Effective Detection Range 100×120mm
Machine Dimensions (excluding screen) 2400×460×1400mm
Overall Weight 270kg
